Specifications:
|
Mechanical%Environmental Characteristics |
|
|
Dimension |
9.37" x 5.56" x 2.62" |
|
Material |
SR Polypropylene |
|
Color |
Yellow |
|
Weight |
0.75 kg (without fiber) |
|
Packaging |
Rugged,hard-shell transit case |
|
Storage Temperature |
-40 ~ +85°C |
|
Operating temperature |
-40 ~ +85°C |
|
Humidity |
0~95% (no condensing) |
|
Fibe r& Connector Characteristics |
|
|
Fiber Types |
G652D,G657A,OM1,OM3,OM4 |
|
Lead Length |
2 Meters,3mm buffer |
|
Typical Loss |
<1dB@1310 for 1000 meters |
|
Connector Type |
SC/LC/FC/ST |
|
Polish |
PC,UPC,APC |
|
Return Loss |
UPC>=50dB,APC>=60dB,PC>=35dB |
|
Repeatability(dB) |
<=0.2(1000 times) |
|
Exchangeability(dB) |
<=0.2 |
Ordering Information
|
OTDR-A-B-C-D |
|
|
A for Input connector |
B for Output connector |
|
C for Fiber Mode |
D for Length |
|
For Example: OTDR-SC-FCA-SM-1KM;1KM SM ,SC on I/P lead, FC/APC on O/P lead |
|

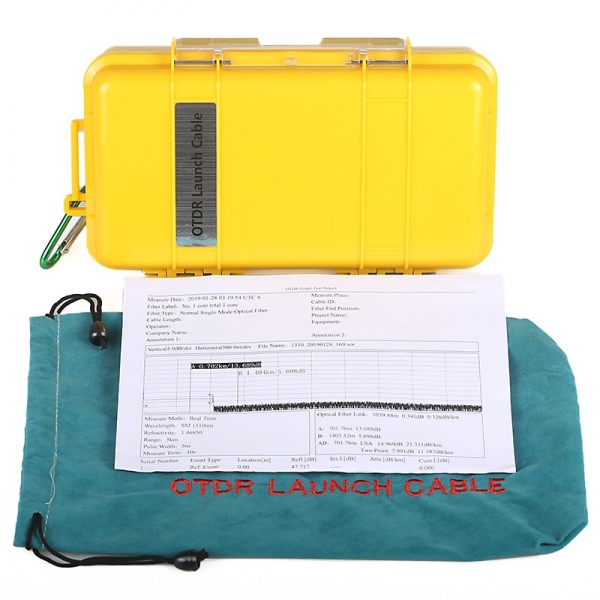

Package included:
Product Details:
